WL6/122P

PASS-THROUGH DOOR

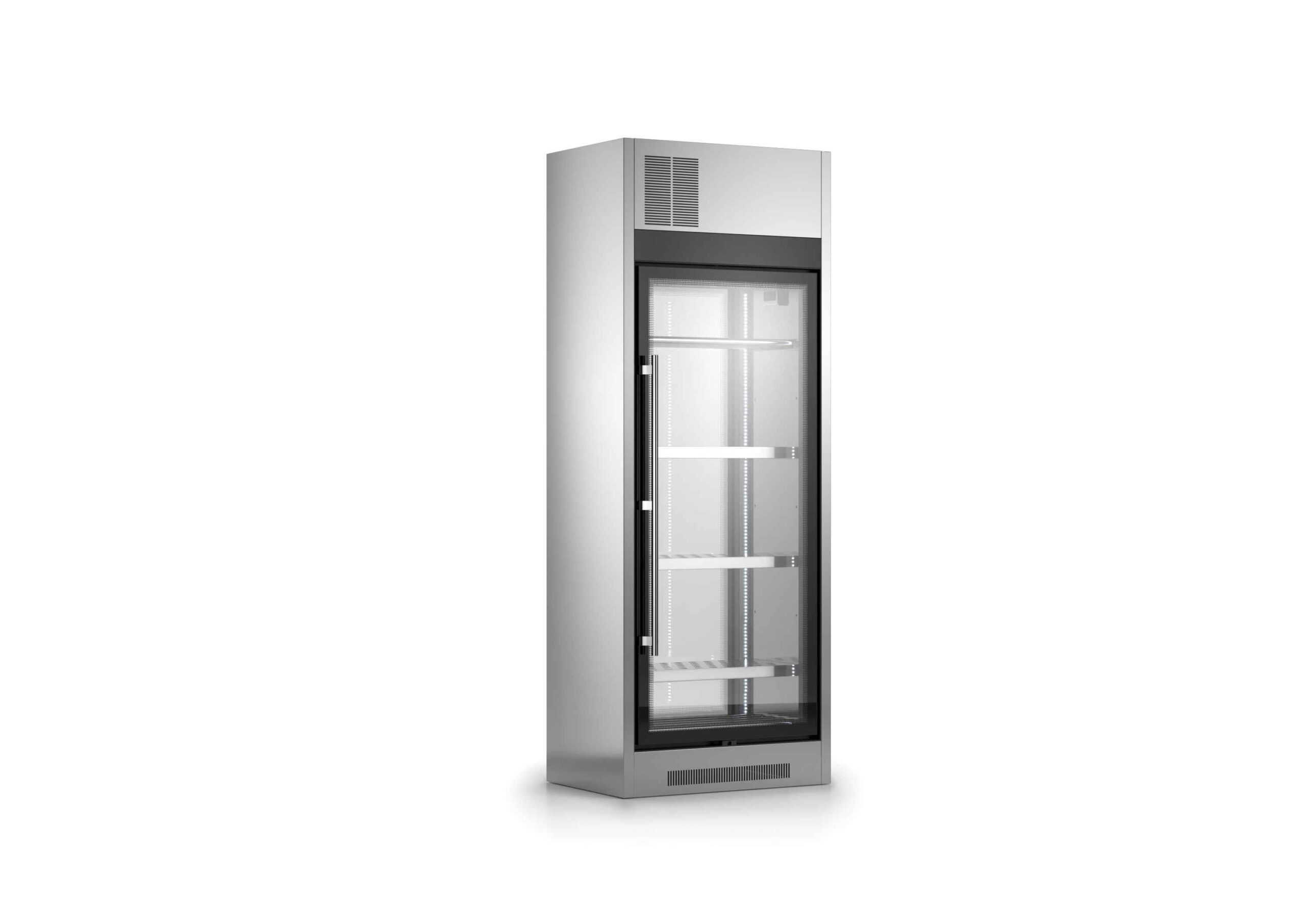

REFRIGERATED WINE DISPLAY: 1 pass-through door, maximum capacity of 128 bottles. Technology, design, and high performance to enhance any environment. Made of AISI 304 stainless steel, it allows for optimal storage of all types of wine by setting the temperature independently within each compartment, +4/+16°C. With a customizable color finish, the full glass door shines thanks to the internal white LED lighting (or warm light upon request).

Dimensions 82 × 55 × 220 cm
Temperature

+4/+16°C

Doors

2

Cooling unit

plug-in unit

Version

PASS-THROUGH DOOR

Capacity

128 bottles

Structure

made in stainelss steel

Technical compartment position

upper technical compartment

Cooling system

ventilated cooling system

Electronic

digital control

Defrost

automatic with heating elements

Evaporation of condensate water

automatic

Fittings on request

painted color finishing on request

Included

led lighting dimmer with remote control

Excluded

bottle-handlings

Insulation thickness

50 mm

Kind of lock

YES

Lighting

Internal white led light, 6000K (on request warm light, 2700K)

Fan speed control

NO

Humidity control

NO

Gas

R290

Supply voltage

Volt.: 1x230V ~ 50Hz

Climatic class

4

  • 60000500 - Kit 4 stainless steel shelves (SR5/01)
    Bottles capacity: no.128
  • 60000510 - Kit 3 stainless steel shelves (SR5/01) + 2 stainless steel bottle-handling tubes (ST5/02)
    Bottles capacity: no.108
  • 60000520 - Kit 3 stainless steel shelves (SR5/01) + 2 inclined bottle-handlings (SI5/04)
    Bottles capacity: no.110
  • 60000530 - Kit 2 stainless steel shelves (SR5/01) + 4 plexiglas flat bottle-handlings (SC5/03)
    Bottles capacity: no.92
  • 60000540 - Kit 2 stainless steel shelves (SR5/01)
    + 2 plexiglas flat bottle-handlings (SC5/03)
    + 2 inclined bottle-handlings (SI5/04)
    Bottles capacity: no.92
  • 60000750 - Glass sides for WL6/220 (overprice)
    Wine Library total length +8 cm than the standard version
  • 60000740 - Stainless steel shelf unit for bottles for WL6 H220 with glass sides, opening of doors on both sides. One unit in each door.
    Inclined bottles.
    (capacity: 60/90 bottles)
  • 60000700 - Stainless steel shelf (no. 32 bottles capacity)
  • 60000705 - Stainless steel horizontal bottle-handlings tubes (no. 6 bottles capacity)
  • 60000710 - Plexiglas horizontal flat bottle-handling (no. 7 bottles capacity)
  • 60000715 - Plexiglas shelf for inclined bottles (no. 7 bottles capacity)
  • SR5/01 -
  • 60000850 - Color finishing WL6 1-2 doors (overprice)
  • 40200180 -
    Condensing unit 1/4 HP for each WL compartment
    (> 10 meters distance)
  • 40200184 - Condensing unit 1/6 HP for each WL compartment
    (≤ 10 meters distance)
  • 45000565 - Wi-Fi supervising system (overprice)
  • 40200560 - 60Hz frequency
