Dimensions | 247 × 55 × 260 cm |
---|---|
Temperature | +4/+16°C |
Doors | 3 |
Cooling unit | plug-in unit |
Version | ONE-SIDE DOOR |
Capacity | 480 bottles |
Home / Products / Wine cellars / Wine Library / WL6/326S

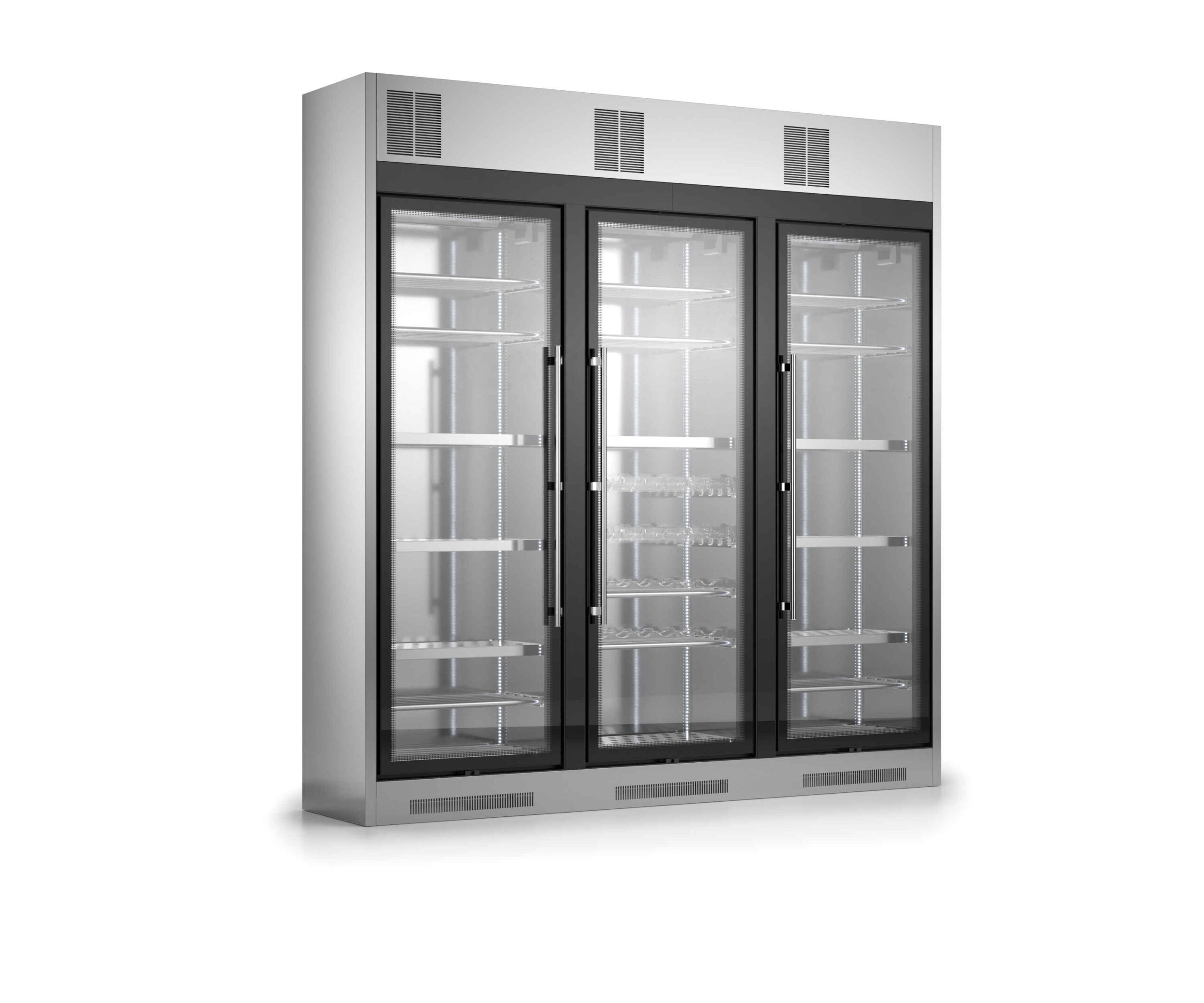

WL6/326S
ONE-SIDE DOOR
REFRIGERATED WINE DISPLAY: 3-door wall version with 3 independent temperatures, maximum bottle capacity of 384.
Technology, design, and high performance to enhance any environment. Made of AISI 304 stainless steel, it allows for optimal preservation of all types of wine by setting the temperature independently in each compartment, +4/+16°C. With a customizable color finish, the full glass doors shine with internal white LED lighting (or warm light upon request).
Structure |
made in stainelss steel |
---|---|
Technical compartment position |
upper technical compartment |
Cooling system |
ventilated cooling system |
Electronic |
digital control |
Defrost |
automatic with heating elements |
Evaporation of condensate water |
automatic |
Fittings on request |
painted color finishing on request |
Included |
led lighting dimmer with remote control |
Excluded |
bottle-handlings |
Insulation thickness |
50 mm |
Kind of lock |
YES |
Lighting |
Internal white led light, 6000K (on request warm light, 2700K) |
Fan speed control |
NO |
Humidity control |
NO |
Gas |
R290 |
Supply voltage |
Volt.: 1x230V ~ 50Hz |
Climatic class |
4 |
- 60000600 - Kit 5 stainless steel shelves (SR5/01)
Bottles capacity: no.160 - 60000610 - Kit 3 stainless steel shelves (SR5/01)
+ 4 stainless steel bottle-handling tubes (ST5/02)
Bottles capacity: no.120 - 60000620 - Kit 3 stainless steel shelves (SR5/01)
+ 4 plexiglas flat bottle-handlings (SC5/03)
Bottles capacity: no.124 - 60000630 - Kit 3 stainless steel shelves (SR5/01)
+ 4 inclined bottle-handlings (SI5/04)
Bottles capacity: no.124 - 60000640 - Kit 2 stainless steel shelves (SR5/01)
+ 2 plexiglas flat bottle-handlings (SC5/03)
+ 2 inclined bottle-handlings (SI5/04)
+ 2 stainless steel bottle-handling tubes (ST5/02)
Bottles capacity: no.104 - 60000760 - Glass sides for WL6/260 (overprice)
Wine Library total length +8 cm than the standard version - 60000745 - Stainless steel shelf unit for bottles for WL6 H260 with glass sides, opening of doors on both sides. One unit in each door.
Inclined bottles.
(capacity: 72/108 bottles) - 60000700 - Stainless steel shelf (no. 32 bottles capacity)
- 60000705 - Stainless steel horizontal bottle-handlings tubes (no. 6 bottles capacity)
- 60000710 - Plexiglas horizontal flat bottle-handling (no. 7 bottles capacity)
- 60000715 - Plexiglas shelf for inclined bottles (no. 7 bottles capacity)
- 60000860 - Color finishing WL6 3-4 doors (overprice)
- 45000565 - Wi-Fi supervising system (overprice)
- 40200184 - Condensing unit 1/6 HP for each WL compartment
(≤ 10 meters distance) - 40200180 - Condensing unit 1/4 HP for each WL compartment
(> 10 meters distance) - 40200560 - 60Hz frequency
- 0 - Prearranged version with valve system for each compartment (deduction)
