| Dimensions | 80 × 75 × 90 cm |
|---|---|
| Doors | 1 |
| Cooling unit | a bordo |
| Capacity | 5 GN 1/1 trays or 600×400 mm trays/shelves (no GN 1/1 shelves) |
| Blast freezing yield | +90/+3°C = Kg 22+90/-18°C = Kg 15 |
| Version | BASIC |
| Capacity (l) | 102 |

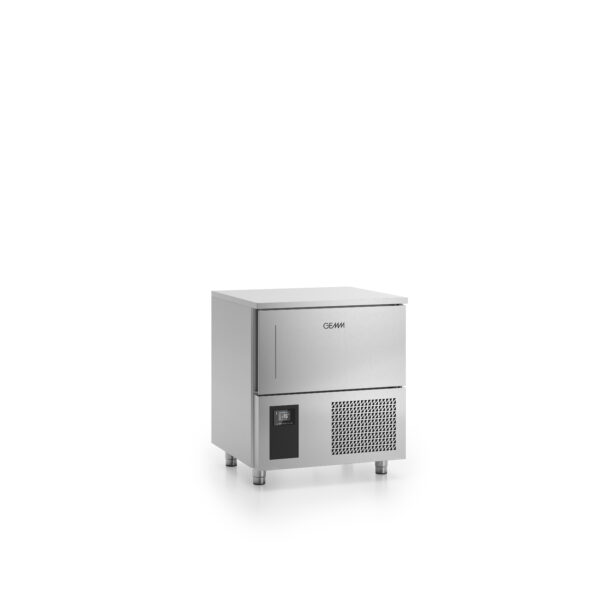

BCB/05
BASIC
BLAST CHILLER / SHOCK FREEZER FOR 5 GN 1/1 / 600×400 TRAYS – Blast freezer which gets rapidly lower the core temperature of foods: chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes. Gas R290. Minimum air temperature -40°C.
| Structure |
made in stainelss steel |
|---|---|
| Posizione vano tecnico |
placed below |
| Refrigeration type |
chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes, reaching minimum air temperature -40°C |
| Electronic |
2.8'' LCD digital touch control |
| Defrosting type |
automatic with hot gas |
| Water evaporation |
manual tray |
| Allestimenti a richiesta |
prearranged for remote system (R452A gas valve), GEMM-Cloud Wi-Fi supervising system |
| Supply with |
trays structure, 67 mm pitch |
| Not included |
trays/shelves |
| Spessore di isolamento |
60 |
| Runner pitch |
67 |
| Controllo ventilazione |
NO |
| Controllo umidità |
NO |
| Gas |
R290 |
| Tensione Alimentazione |
1x230V ~ 50Hz |
| Climatic class |
5 |
- 45100200 - Pastry structure for BCB(T)/05 60x40 cm trays pitch 16,5 mm (overprice)
- 45020503 - Pair of runners for cm 60x40 tray
- 45000540 - Set of 4 Ø 100 castors (overprice)
- 45100235 - Water cooled condensing unit for BCB(T)/5 BCB/10E (overprice)
- 45100240 - Stainless steel GN 1/1 shelf
- 45100242 - Stainless steel cm 60x40 shelf
- 40200560 - 60Hz frequency
- 45000565 - Wi-Fi supervising system (overprice)
