Dimensions | 81 × 50 × 135 cm |
---|---|
Temperature | +4/+16°C |
Doors | 1 |
Cooling unit | plug-in unit |
Version | ONE-SIDE DOOR |
Capacity | 80 bottles |
Home / Products / Wine cellars / Wine Display / WD5/113

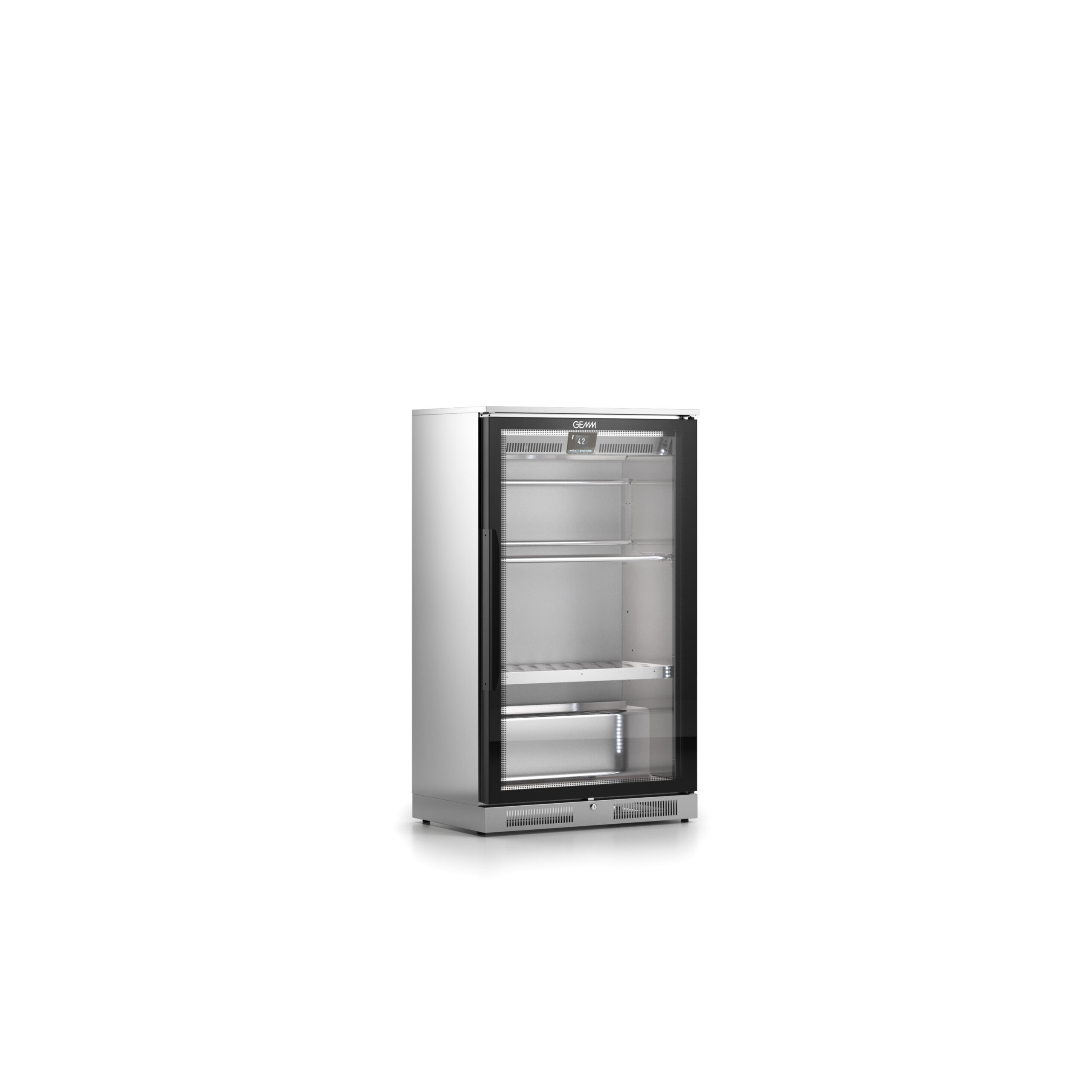

WD5/113
ONE-SIDE DOOR
REFRIGERATED WINE DISPLAY: maximum capacity: no. 80 bottles. Compact and elegant, made from stainless steel with high-density polyurethane insulation, it operates in either ventilated or static mode, successfully maintaining the appropriate serving temperature for different types of wines. Each bottle is enhanced by the full glass door equipped with an anti-fogging device and white LED lighting (or warm lighting upon request).
Structure |
made in stainelss steel |
---|---|
Technical compartment position |
retractable, on the bottom |
Cooling system |
ventilated or static cooling system |
Electronic |
digital control |
Defrost |
automatic by pause |
Evaporation of condensate water |
automatic |
Fittings on request |
painted color finishing on request |
Included |
Max shelves capacity: no. 2 bottle-handlings (WR5/01 or WT5/01)
|
Excluded |
bottle-handlings |
Insulation thickness |
50 mm |
Kind of lock |
YES |
Lighting |
Internal white led light, 6000K (on request warm light, 2700K) |
Fan speed control |
NO |
Humidity control |
NO |
Gas |
R290 |
Supply voltage |
Volt.: 1x230V ~ 50Hz |
Climatic class |
4 |


Internal facilities
- WR5/01: Ripiano forato in acciaio inox AISI 304 18/10, max 24 bottiglie
- WT5/02: Struttura orizzontale tubi inox AISI 304 18/10, max 24 bottiglie
Soluzioni
- 2 WR5/01
- 2 WT5/02
- 1 WR5/01 + 1 WT5/02
- 60001135 - Fixed stainless steel bottle-handling structure made in satin square tubes for WD5/113
(capacity: 40 bottles) - 60001100 - Stainless steel shelf (no. 32 bottles) for WD5/
- 60001110 - Stainless steel horizontal bottle-handlings tubes (no. 24 bottles) for WD5/
- 60001150 - Stainless steel top cm 81x50x2h
- 60002200 - Color finishing WD DA SF (overprice)
- 60002180 - Set of retractable castors
- 40200180 - Condensing unit 1/4 HP for each WL compartment
(> 10 meters distance) - 0 - Version without condensing unit for BCC/4011 (deduction)
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
