| Dimensions | 316 × 436 × 267 cm |
|---|---|
| Türen | 1 |
| Kondensatoreinheit | unità condensatrice remota |
| Interne Kapazität | no. 16 600×800 trolleys |
| Temperatur | -10/+40°C |
| Version | 90%RH MAX |
CL16/3143
90%RH MAX

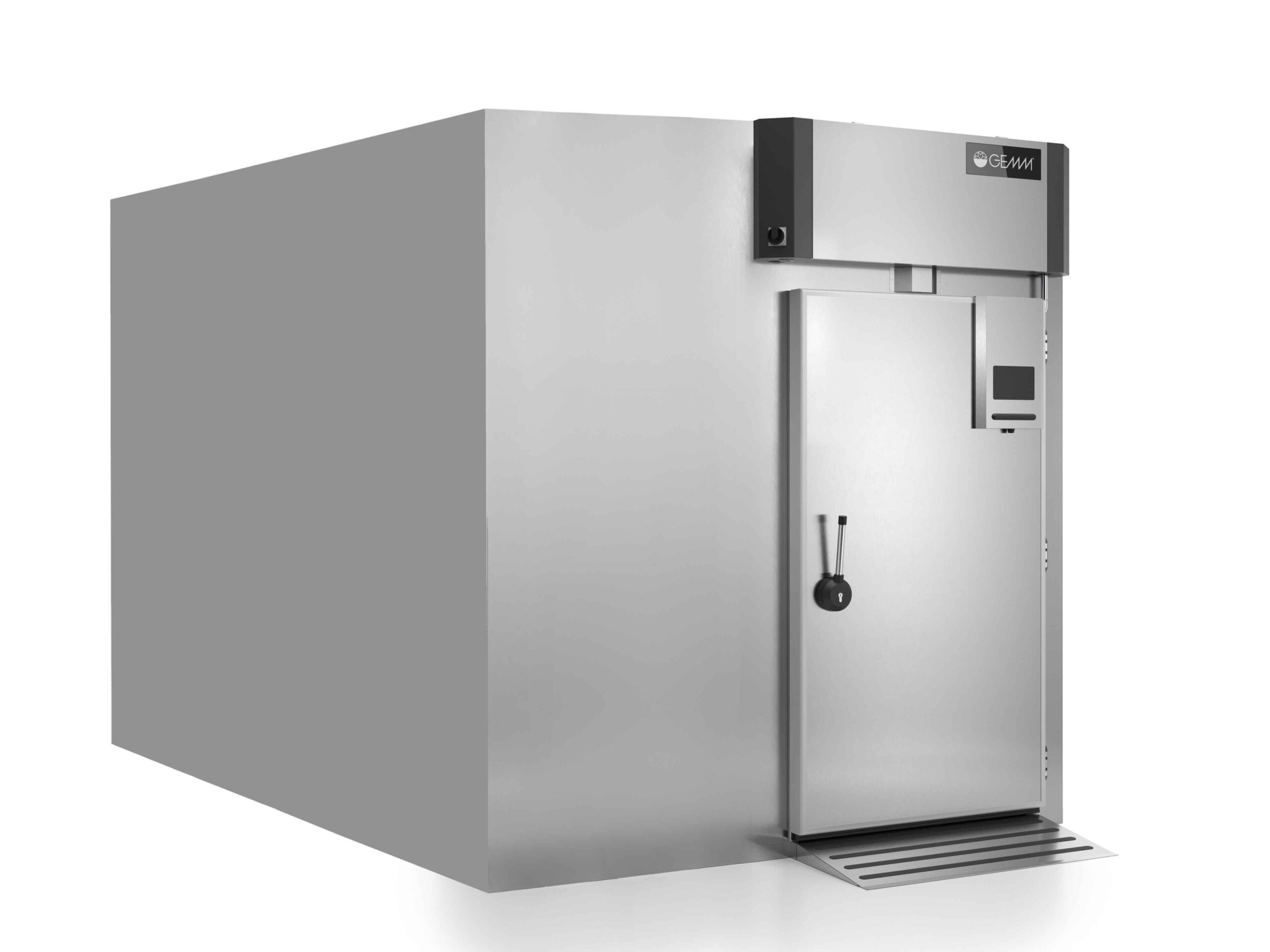

RETARDER PROOFER ROOM FOR 16 TROLLEYS 600×800 WITH RAMP – Modular panel retarder proofer room complete with steam generator, 7” touch screen control panel with ventilation and humidity control in all phases, and remote Wi-Fi supervision via GEMM Cloud.
| Structure |
external finish in grey PET sheet metal / internal finish in AISI 304 18/10 stainless steel lining |
|---|---|
| Technical compartment position |
control panel and electrical system with front access |
| Cooling system |
"Gentle" cooling system with indirect/soft ventilation |
| Electronic |
7'' TOUCH screen control board |
| Defrost |
automatic defrosing system with heating elements |
| Included |
module for connection to the GEMM-Cloud service; USB port |
| Excluded |
trolleys, piping for connection to the condenser unit, and gas charging |
| Insulation thickness |
80 |
| Kind of lock |
YES |
| Lighting |
YES |
| Fan speed control |
YES |
| Humidity control |
YES |
| Relative humidity |
max 90% |
| Gas |
R448A/R449A |
| Supply voltage |
3x400V ~ 50Hz |
| Climatic class |
5 |
- 48002000 - Standard door cm 80x197h with ramp (additional)
- 48002005 - Standard door cm 100x197h with ramp (additional)
- 48002030 - Dictator device
(for soft self-closure of the door) - 48002040 - Glass window cm 40x40 for door (overprice)
- 48002045 - Glass window cm 40x160 for door (overprice)
- 48002050 - Left hinged door (overprice)
- 48002060 - Stainless steel AISI 304 external finishing (overprice)
- 40200560 - 60Hz frequency
