CL1/MINI+

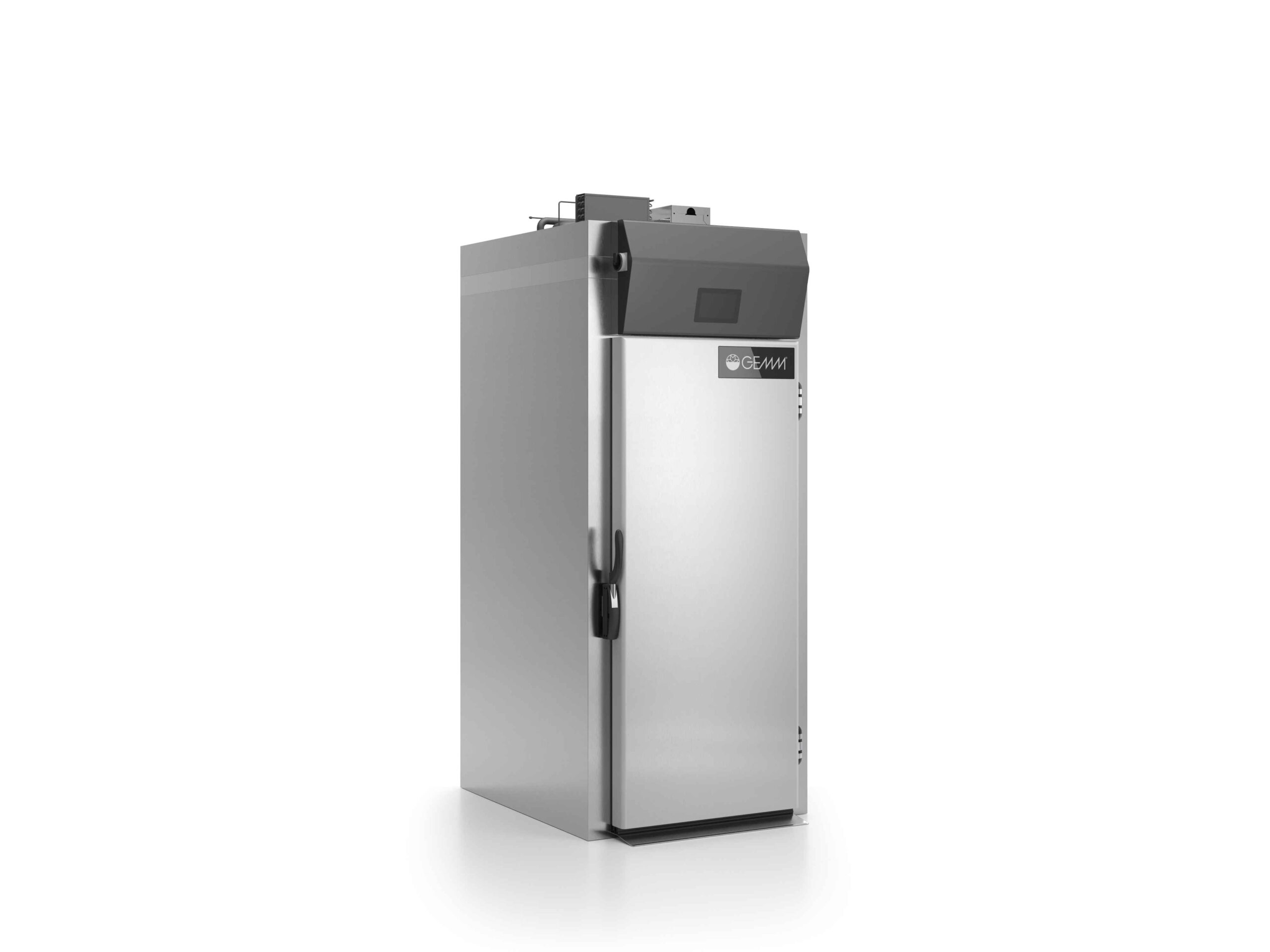

RETARDER PROOFER ROOM FOR 1 TROLLEY 600×800 – “Compact” modular panel retarder proofer room complete with steam generator, 7” touch screen control panel with ventilation and humidity control in all phases, and remote Wi-Fi GEMM-Cloud supervision.

Dimensions 96 × 117 × 260 cm
Doors

1

Cooling unit

plug-in unit

Capacity

no. 1 carrello 600×800

Temperature

-5/+40°C

Structure

external finish in grey PET sheet metal / internal finish in AISI 304 18/10 stainless steel lining

Technical compartment position

control panel and electrical system with front access

Cooling system

"Gentle" cooling system with indirect/soft ventilation

Electronic

7'' TOUCH screen control board

Defrost

automatic hot gas defrosting

Evaporation of condensate water

Automatic condensate evaporation

Included

module for connection to the GEMM-Cloud service; USB port

Excluded

trolleys

Insulation thickness

80

Kind of lock

YES

Lighting

YES

Fan speed control

YES

Humidity control

YES

Relative humidity

max 90%

Gas

R290

Supply voltage

1x230V ~ 50Hz

Climatic class

5

  • 48002030 - Dictator device
    (for soft self-closure of the door)
  • 48002040 - Glass window cm 40x40 for door (overprice)
  • 48002045 - Glass window cm 40x160 for door (overprice)
  • 48002050 - Left hinged door (overprice)
  • 40200560 - 60Hz frequency
