| Dimensions | 90 × 70 × 100 cm |
|---|---|
| Temperature | -15/-20°C |
| Doors | 1 |
| Cooling unit | a bordo |
| Version | LOW TEMPERATURE |
| Depth | 70 |
| Capacity | GN 1/1 racks |
| Corpus | 760 |
| Capacity (l) | 161 |

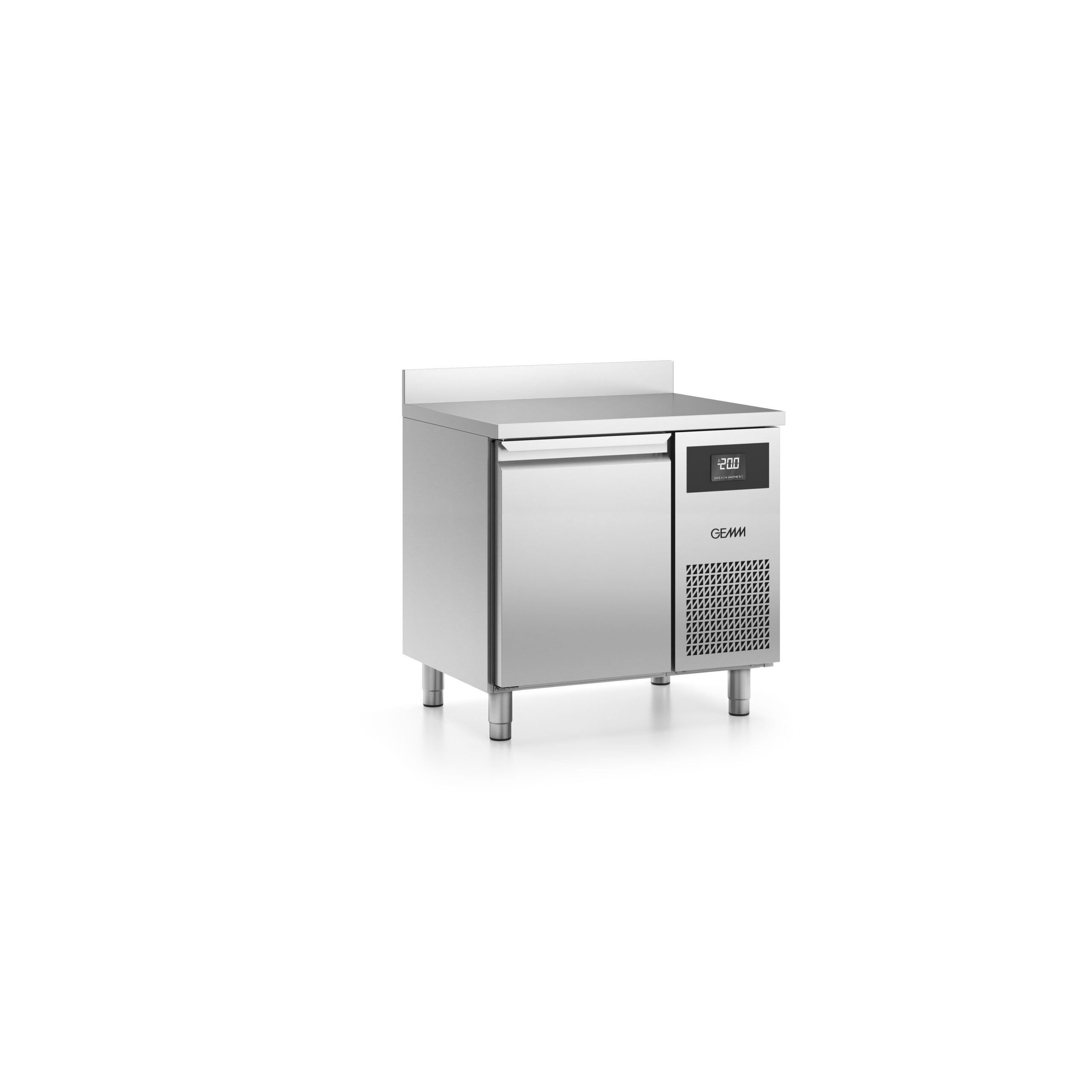

THBD/090A
LOW TEMPERATURE
GN 1/1 FREEZER COUNTER BODY h 760 – Freezer counter 700 depth, available also with left technical department.
| Structure |
made in stainelss steel |
|---|---|
| Posizione vano tecnico |
on right side |
| Refrigeration type |
ventilated cooling system |
| Electronic |
2.8'' touch control panel, digital display |
| Defrosting type |
automatic with heating elements |
| Water evaporation |
automatic |
| Allestimenti a richiesta |
drawer units |
| Supply with |
2 GN 1/1 shelves each door |
| Spessore di isolamento |
50 |
| Runner pitch |
75 |
| Posizioni su cremagliera |
8 |
| Stainless steel work top |
10-ott |
| Controllo ventilazione |
NO |
| Controllo umidità |
NO |
| Gas |
R290 |
| Tensione Alimentazione |
1x230V ~ 50Hz |
| Climatic class |
5 |
- 40341200 - Freezer drawer unit with 2 1/2 drawers (overprice)
- 40200506 - Pair of runners for GN 1/1 shelf
- 40200500 - GN 1/1 shelf
- 45100240 - Stainless steel GN 1/1 shelf
- 40105050 - Stainless steel GN 1/1 tray h 40 mm
- 40105060 - Stainless steel GN 1/1 tray h 65 mm
- 40105070 - Stainless steel GN 1/1 tray h 100 mm
- 40105080 - Stainless steel lid for GN 1/1 tray
- 40200530 - Set of 4 Ø 125 castors (2 self-locking)
- 40203005 - LED light for 1 door (counter), overprice
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
