| Dimensions | 134 × 135 × 239 cm |
|---|---|
| Doors | 1 |
| Cooling unit | unità condensatrice remota |
| Capacity | no. 1 carrello GN 2/1 o 600×800 |
| Blast freezing yield | +90/+3°C = Kg 200+90/-18°C = Kg 180 |
| Version | MAXI |

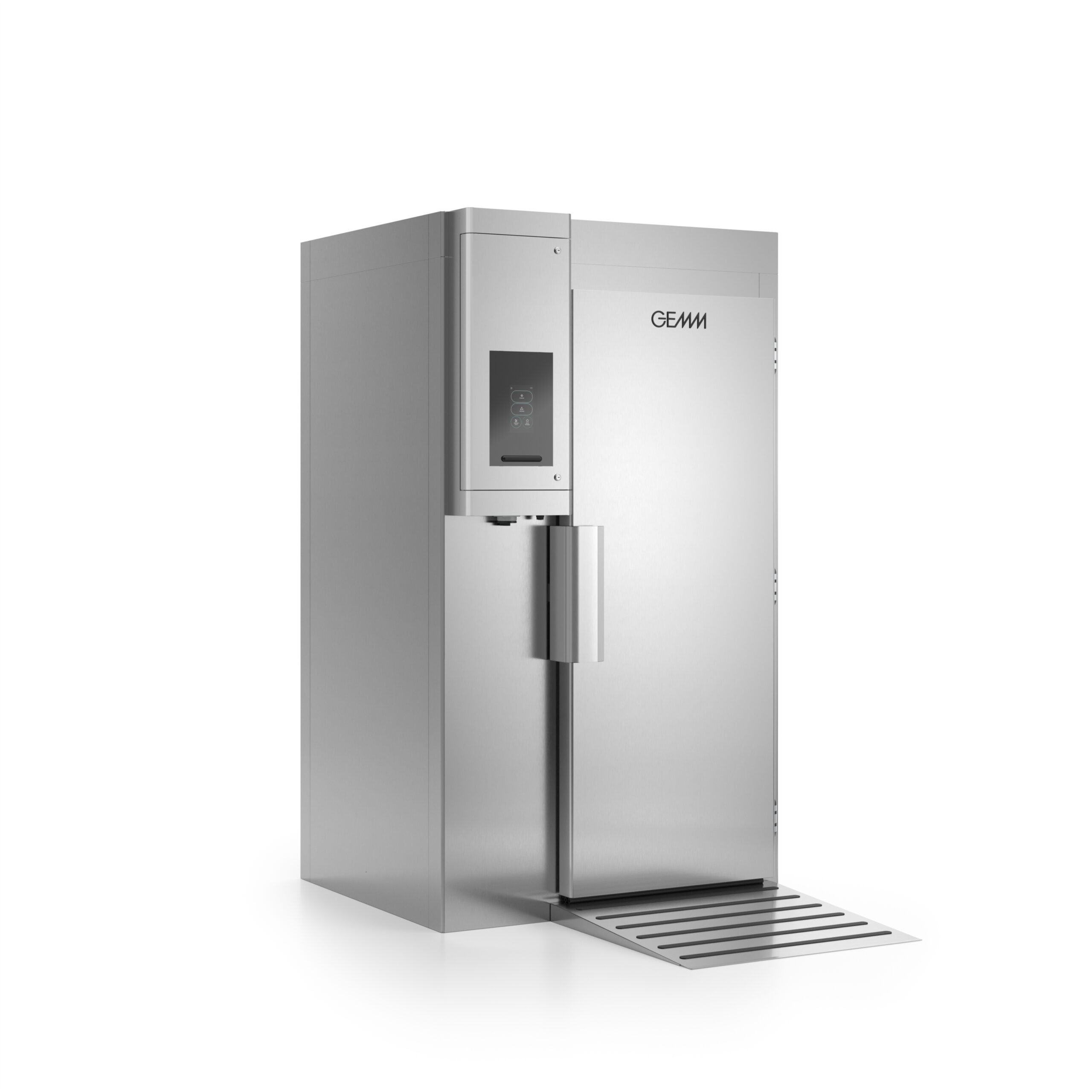

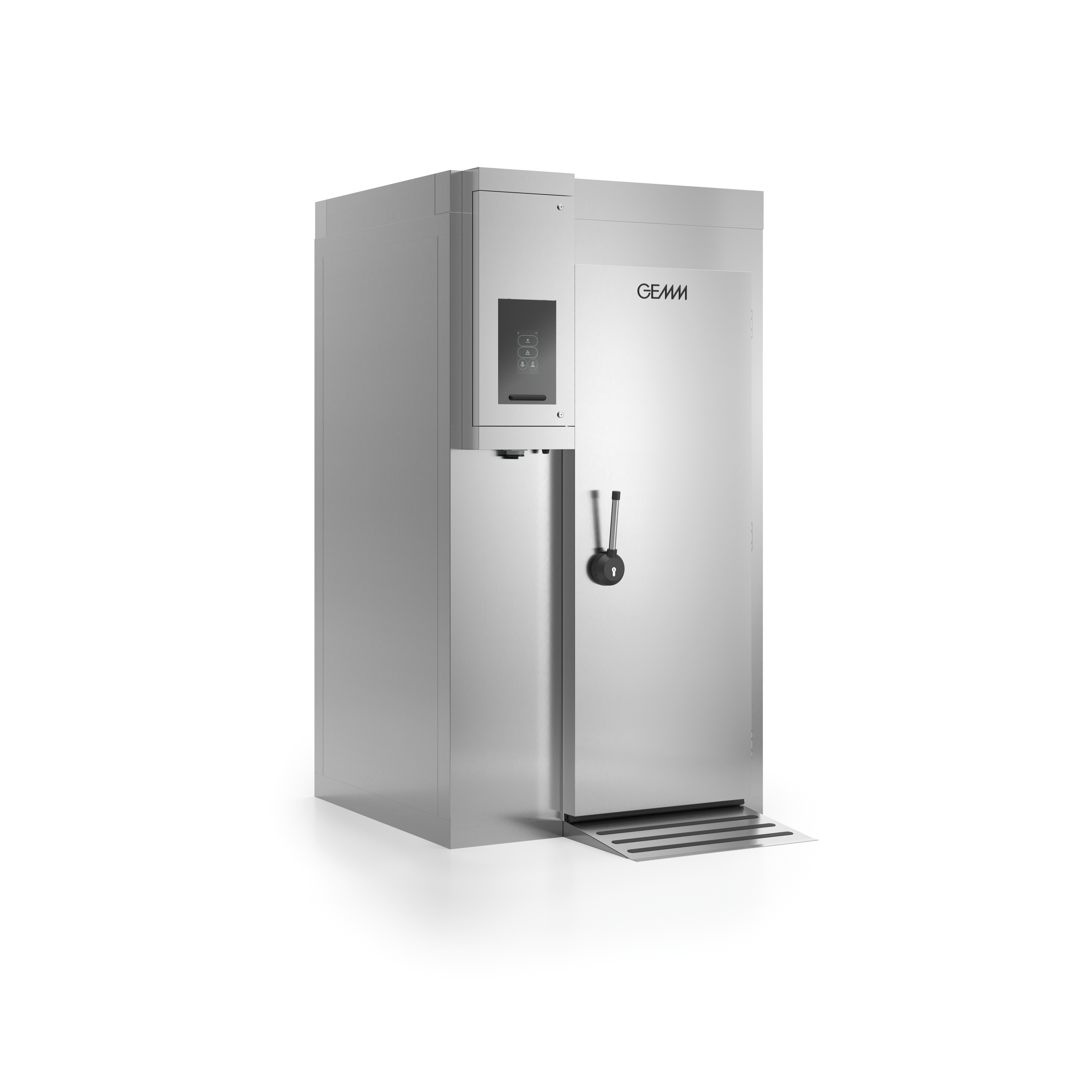

BCC/4014P
BLAST CHILLER / SHOCK FREEZER FOR 1 GN 2/1 – 600X800 TROLLEY POWERED – The MAXI range of blast chillers / shock freezers for trolleys is designed to meet the rapid chilling needs of medium- to large-scale laboratories, from catering facilities to semi-industrial pastry and bakery labs. Chilling from +90°C to +3°C in 90 minutes and freezing from +90°C to -18°C in 240 minutes, with a minimum air temperature of –40 °C. 7″ touchscreen control panel with remote Wi-Fi supervision via GEMM-Cloud. Core probe, USB port and GEMM-Cloud come as standard.
| Structure |
Internal finish in AISI 304 stainless steel, rounded corners |
|---|---|
| Technical compartment position |
on top |
| Electronic |
7'' TOUCH screen control board |
| Defrost |
with hot gas |
| Evaporation of condensate water |
condensation drain pipe (prearrange water drain) |
| Included |
Core probe, USB port, GEMM-Cloud Wi-Fi supervising system included |
| Excluded |
trolleys |
| Insulation thickness |
70 |
| Kind of lock |
YES |
| Fan speed control |
YES |
| Humidity control |
NO |
| Supply voltage |
3x400V ~ 50Hz |
| Climatic class |
5 |
- 45100951 - Additional pass-through door for BCC/4014(P) (overprice)
- 45100927 - Water cooled condensing unit for BCC/4014P BCC/6015P (overprice)
- 45100945 - Low noise housing condensing unit for BCC/4014P BCC/6015P (overprice)
- 45100961 - 110 cm long stainless steel ramp BCC/4008 BCC/4011 BCC/4014(P) (overprice)
- 45100971 - Left hinged door for BCC/4014(P) (overprice)
- 45100917 - Winter kit for remote condensing unit BCC/4011 4014 4014P 6015 6015P 8027 (overprice)
- Version without condensing unit for BCC/4014P BCC/6015P (deduction)
- 40200560 - 60Hz frequency
