| Dimensions | 72 × 81 × 209 cm |
|---|---|
| Temperature | +2/+10°C |
| Capacity (l) | 585 |
| Doors | 1 |
| Cooling unit | plug-in unit |
| Capacity | GN 2/1 racks |
| Version | TEMPERATURA POSITIVA |

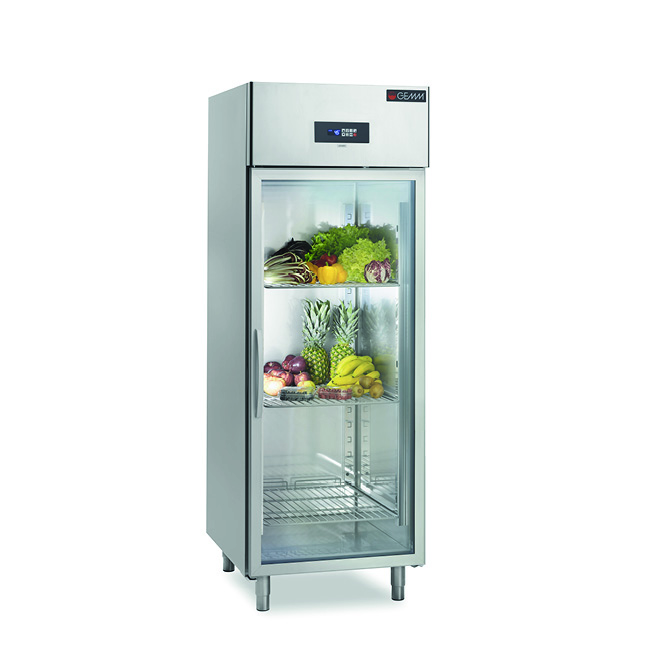

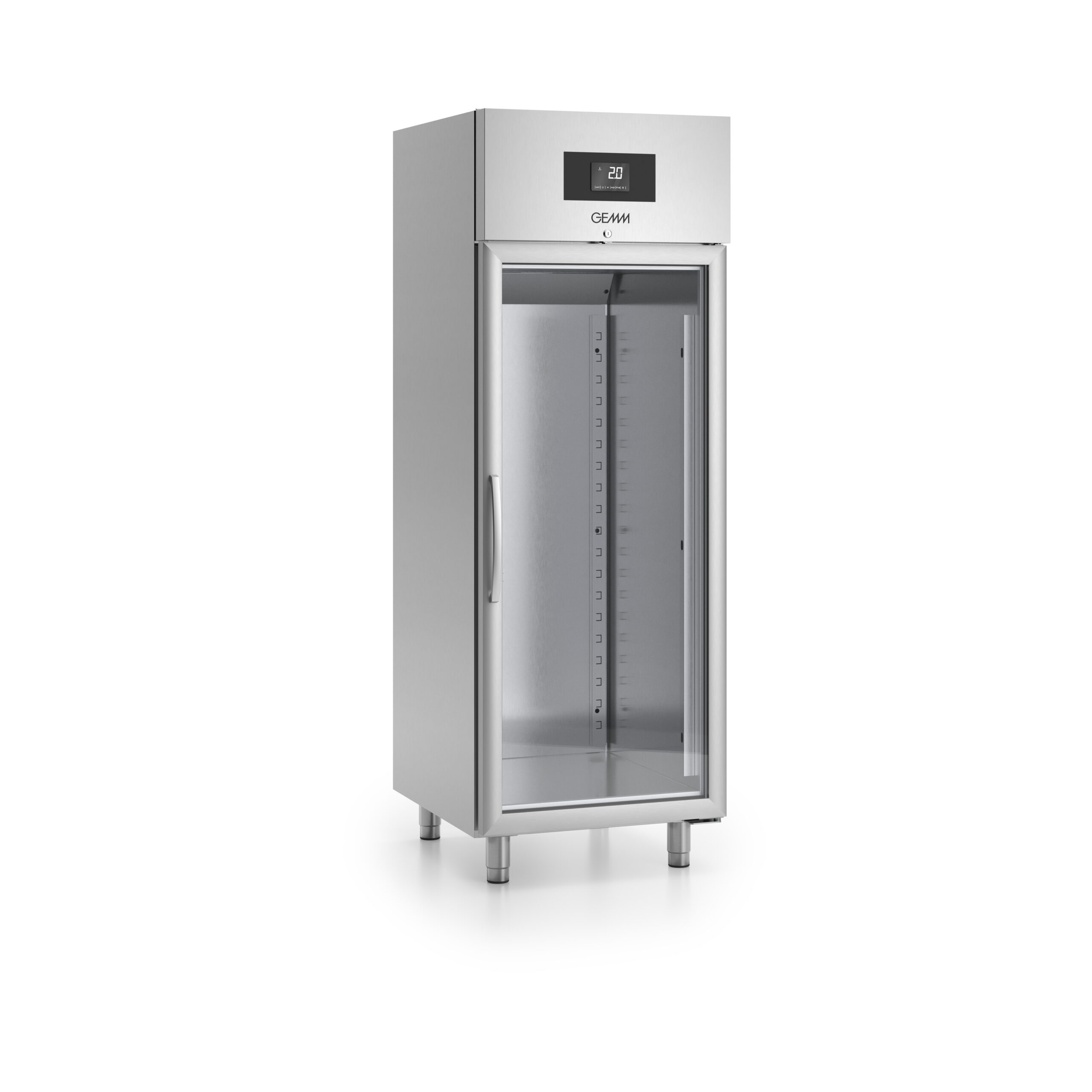

EFNV/01
NORMAL TEMPERATURE
GN 2/1 POSITIVE UPRIGHT CABINET WITH GLASS DOOR – Refrigerated upright cabinet glass door for GN 2/1 racks. Prearranged for remote condensing unit with valve system on request.
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
on top |
| Cooling system |
ventilated cooling system |
| Electronic |
2.8'' touch control panel, digital display |
| Defrost |
with heating elements |
| Evaporation of condensate water |
automatic condensate evaporation |
| Fittings on request |
prearranged for remote system (R452A gas valve) |
| Included |
3 GN 2/1 shelves |
| Insulation thickness |
60 |
| Pitch |
65 |
| Positions on racks |
19 |
| Kind of lock |
YES |
| Fan speed control |
NO |
| Humidity control |
NO |
| Gas |
R290 |
| Supply voltage |
1x230V ~ 50Hz |
| Climatic class |
4 |
- 45000500 - GN 2/1 shelf
- 45000515 - GN 2/1 stainless steel shelf
- 45001550 - Pair of runners for GN 2/1 shelf
- 45000530 - Pedal for single door (overprice)
- 45000540 - Set of 4 Ø 100 castors (overprice)
- 45000543 - Pastry structure for 19 60x40cm trays (65 mm pitch) each door (overprice)
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
- Prearranged version with valve system for normal temperature equipment (deduction)
