| Dimensions | 79 × 108 × 214 cm |
|---|---|
| Temperature | -2/+8°C |
| Capacity (l) | 900 |
| Doors | 2 |
| Cooling unit | plug-in unit |
| Version | TEMPERATURA POSITIVA |
| Capacity | no. 40 teglie 600×400 mm |

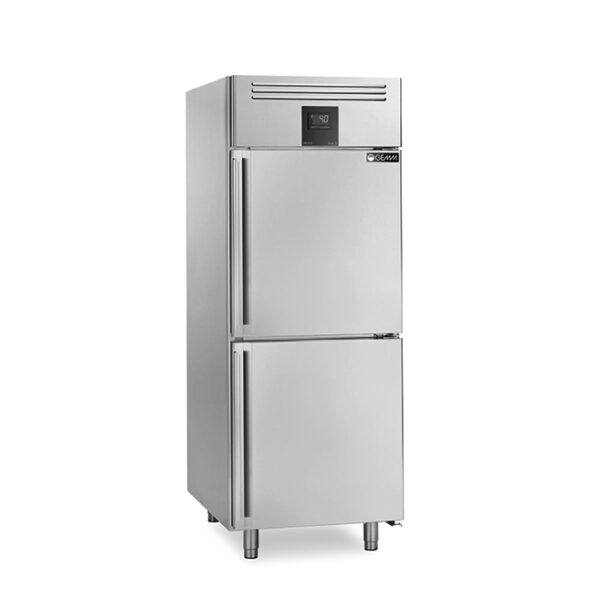

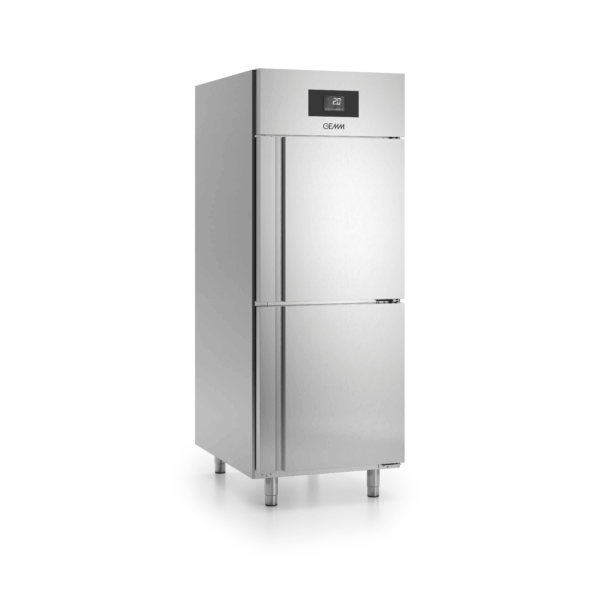

ARP/41
NORMAL TEMPERATURE
PASTRY POSITIVE UPRIGHT CABINET 40 TRAYS, 2 HALF DOORS – Pastry refrigerated cabinet for 40 600×400 trays, with high umidity level for a better storage of fresh product and energy save. Available also prearranged for remote condensing unit with valve system.
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
on top |
| Cooling system |
"Gentle" cooling system with indirect/soft ventilation |
| Electronic |
2.8'' touch control panel, digital display |
| Defrost |
automatic defrosing system defrosting system with hot gas |
| Evaporation of condensate water |
automatic |
| Fittings on request |
prearranged for remote system (R452A gas valve) |
| Included |
20 pair of runners for 600x800 trays |
| Insulation thickness |
75 |
| Pitch |
16,5 |
| Positions on racks |
74 |
| Fan speed control |
NO |
| Humidity control |
NO |
| Gas |
R290 |
| Supply voltage |
1x230V ~ 50Hz |
| Climatic class |
5 |
- 45020511 - Pair of runners for cm 60x80 tray
- 45020512 - Rilsan cm 60x80 shelf
- 45020515 - Stainless steel 60x80 cm shelf
- 42000560 - Stainless steel cm 40x60x2h tray
- 42000562 - Stainless steel cm 40x60x3h tray
- 45020520 - Stainless steel cm 60x80x2h tray
- 45020525 - Tempered glass door with internal LED light (overprice)
- 45020530 - Cabinet LED light (overprice)
- 45000540 - Set of 4 Ø 100 castors (overprice)
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
- Prearranged version with valve system for normal temperature equipment
not available for DELICE PLUS version (deduction)
