| Dimensions | 79 × 69 × 214 cm |
|---|---|
| Temperature | -22/-10°C |
| Capacity (l) | 500 |
| Version | LOW TEMPERATURE |
| Doors | 1 |
| Cooling unit | plug-in unit |
| Capacity | no. 20 teglie 600×400 mm |

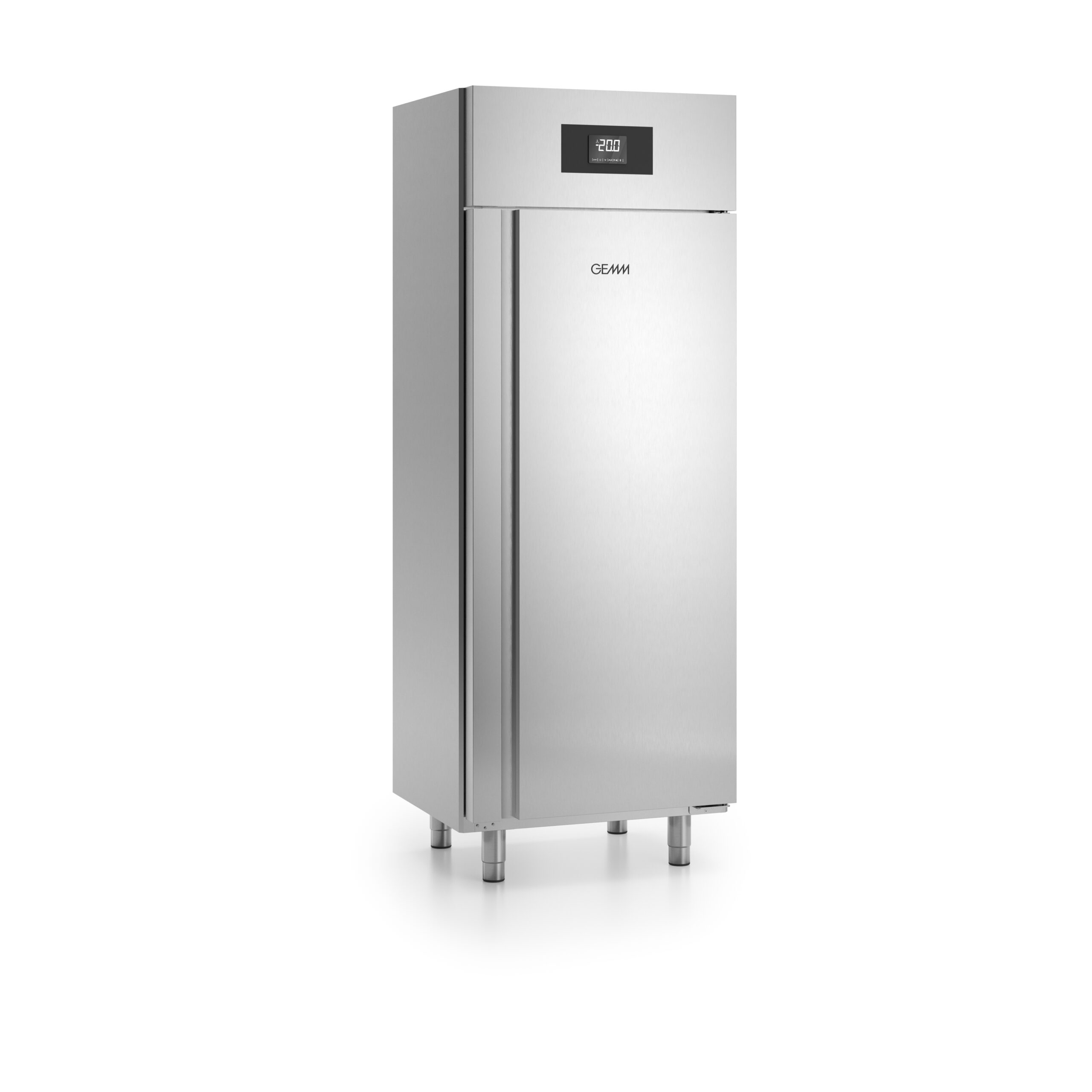

ARP/20B
LOW TEMPERATURE
PASTRY NEGATIVE UPRIGHT CABINET 20 TRAYS – Pastry freezer cabinet for 20 600×400 trays, with high umidity level for a better storage of fresh product and energy save. Available also prearranged for remote condensing unit with valve system.
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
on top |
| Cooling system |
"Gentle" cooling system with indirect/soft ventilation |
| Electronic |
2.8'' touch control panel, digital display |
| Defrost |
automatic defrosing system defrosting system with hot gas |
| Evaporation of condensate water |
automatic |
| Fittings on request |
prearranged for remote system (R452A gas valve) |
| Included |
20 pair of runners for 600x400 trays |
| Insulation thickness |
75 |
| Pitch |
16,5 |
| Positions on racks |
74 |
| Fan speed control |
NO |
| Humidity control |
NO |
| Gas |
R290 |
| Supply voltage |
1x230V ~ 50Hz |
| Climatic class |
5 |
- 45020503 - Pair of runners for cm 60x40 tray
- 45020550 - Rilsan cm 60x40 shelf
- 45100242 - Stainless steel cm 60x40 shelf
- 42000560 - Stainless steel cm 40x60x2h tray
- 42000562 - Stainless steel cm 40x60x3h tray
- 45020525 - Tempered glass door with internal LED light (overprice)
- 45020530 - Cabinet LED light (overprice)
- 45000540 - Set of 4 Ø 100 castors (overprice)
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
- Prearranged version with valve system for low temperature equipment,
not available for DELICE PLUS version (deduction)
