| Dimensions | 90 × 69 × 81 cm |
|---|---|
| Temperature | -15/-20°C |
| Doors | 1 |
| Cooling unit | plug-in unit |
| Version | LOW TEMPERATURE |
| Depth | 69 |
| Capacity | GN 1/1 racks |
| Corpus | 665 |
| Capacity (l) | 138 |

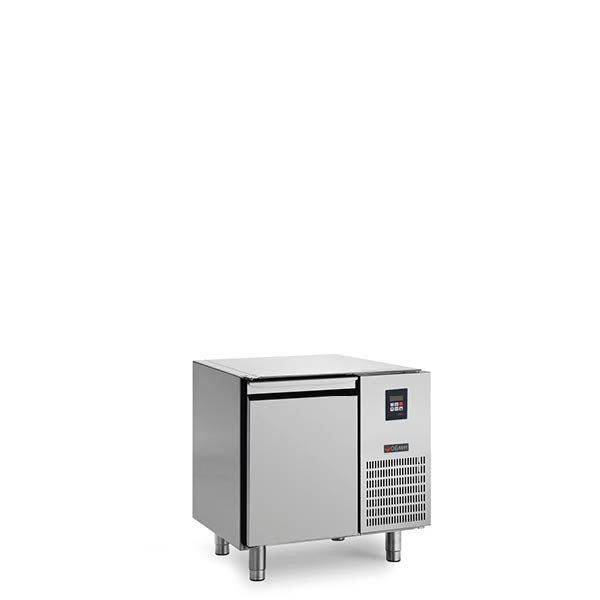

TGB7D/090S
LOW TEMPERATURE
GN 1/1 FREEZER COUNTER – Freezer counter 700 depth, available also with left technical department.
| Structure |
made in stainelss steel |
|---|---|
| Technical compartment position |
on right side |
| Cooling system |
ventilated cooling system |
| Electronic |
2.8'' touch control panel, digital display |
| Defrost |
with heating elements |
| Evaporation of condensate water |
automatic condensate evaporation |
| Fittings on request |
drawer units |
| Included |
1 GN 1/1 shelf each door |
| Insulation thickness |
50 |
| Pitch |
75 |
| Positions on racks |
7 |
| Fan speed control |
NO |
| Humidity control |
NO |
| Gas |
R290 |
| Supply voltage |
1x230V ~ 50Hz |
| Climatic class |
5 |
- 40202600 - Freezer drawer unit with 2 1/2 drawers (overprice)
- 40200500 - GN 1/1 shelf
- 45100240 - Stainless steel GN 1/1 shelf
- 40200506 - Pair of runners for GN 1/1 shelf
- 40105050 - Stainless steel GN 1/1 tray h 40 mm
- 40105060 - Stainless steel GN 1/1 tray h 65 mm
- 40105070 - Stainless steel GN 1/1 tray h 100 mm
- 40105080 - Stainless steel lid for GN 1/1 tray
- 40200530 - Set of 4 Ø 125 castors (2 self-locking)
- 40203005 - LED light for 1 door (counter), overprice
- 45000565 - Wi-Fi supervising system (overprice)
- 40200560 - 60Hz frequency
